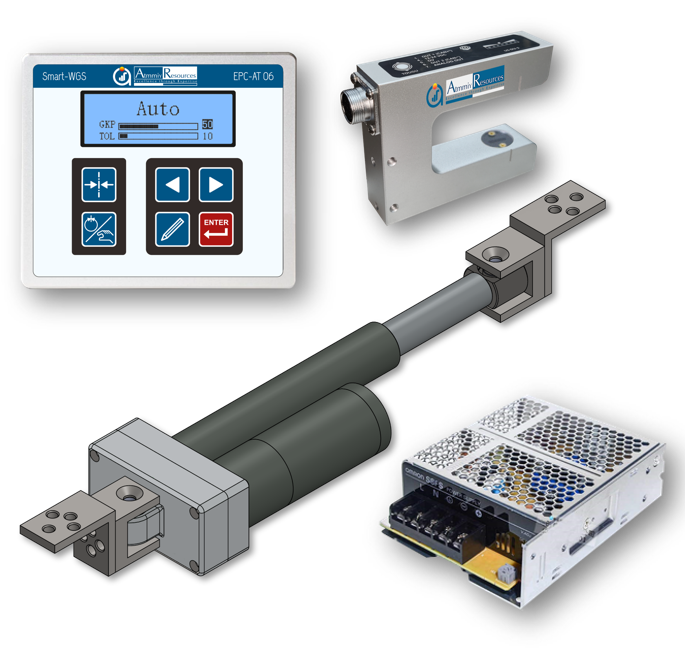

Edge Guide System Components (Standard Controller)
- Closed loop Edge positioning system
- A sensor detects the web actual position without physical contact.
- Depending on the task and substrate properties, this may be an infra-red, ultrasonic Sensor.
- The controller compares the actual web value with the specified set value and transmits the relevant corrective signal to the actuator.
- The actuator corrects the web travel. Depending on the application and the substrate type, the actuator may be a pivoting frame, a steering roller, a turning bar or a linear drive for a winding or Unwinding station.
