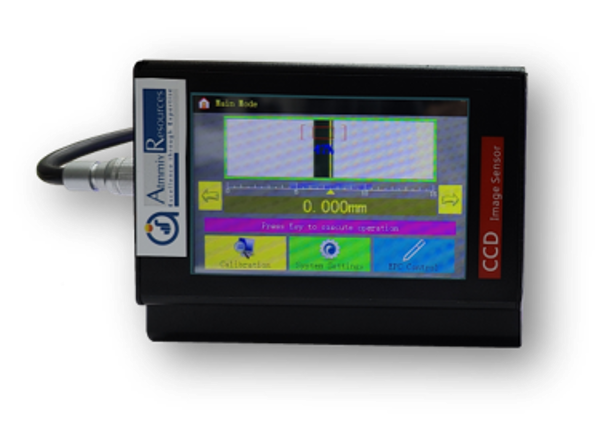

CCD Line Guide Sensor
A CCD (Charge-Coupled Device) line guide sensor is a type of optical sensor used for precise edge detection, alignment, or positioning in industrial applications. It consists of a linear array of CCD pixels that capture light intensity variations along a line.
Linear Array:
The CCD line guide sensor contains a linear array of light sensitive pixels. Each pixel can detect the intensity of light falling on it.
Light Source:
In many cases, a light source is used to illuminate the surface or object being inspected. The light reflects off the surface, creating variations in intensity that correspond to features such as edges or boundaries.
Edge/Line Or Contrast Detection:
As the CCD sensor scans across the surface or object, each pixel in the linear array detects the intensity of light at its location. Variations in light intensity, such as changes in brightness or contrast, indicate the presence of edges or features.
CCD line guide sensors are commonly used in various industries for applications such as web edge detection in printing and converting machinery, alignment of materials in manufacturing processes, or guiding robotic systems for precise positioning tasks. They offer advantages such as high resolution, fast response times, and reliability in a wide range of operating conditions.
